Rotary Grid
Magnetic Separator

Custom made to suit your application

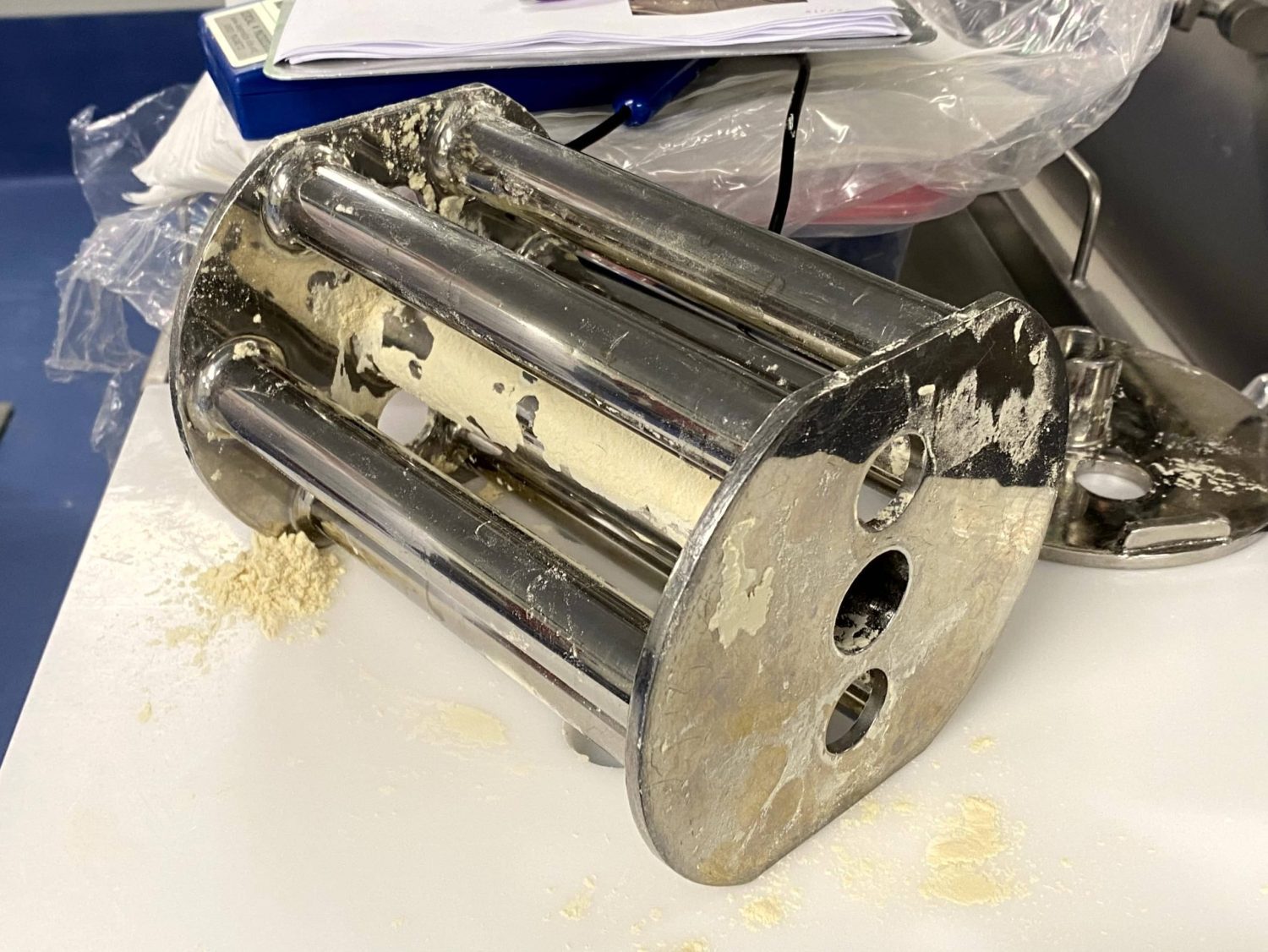

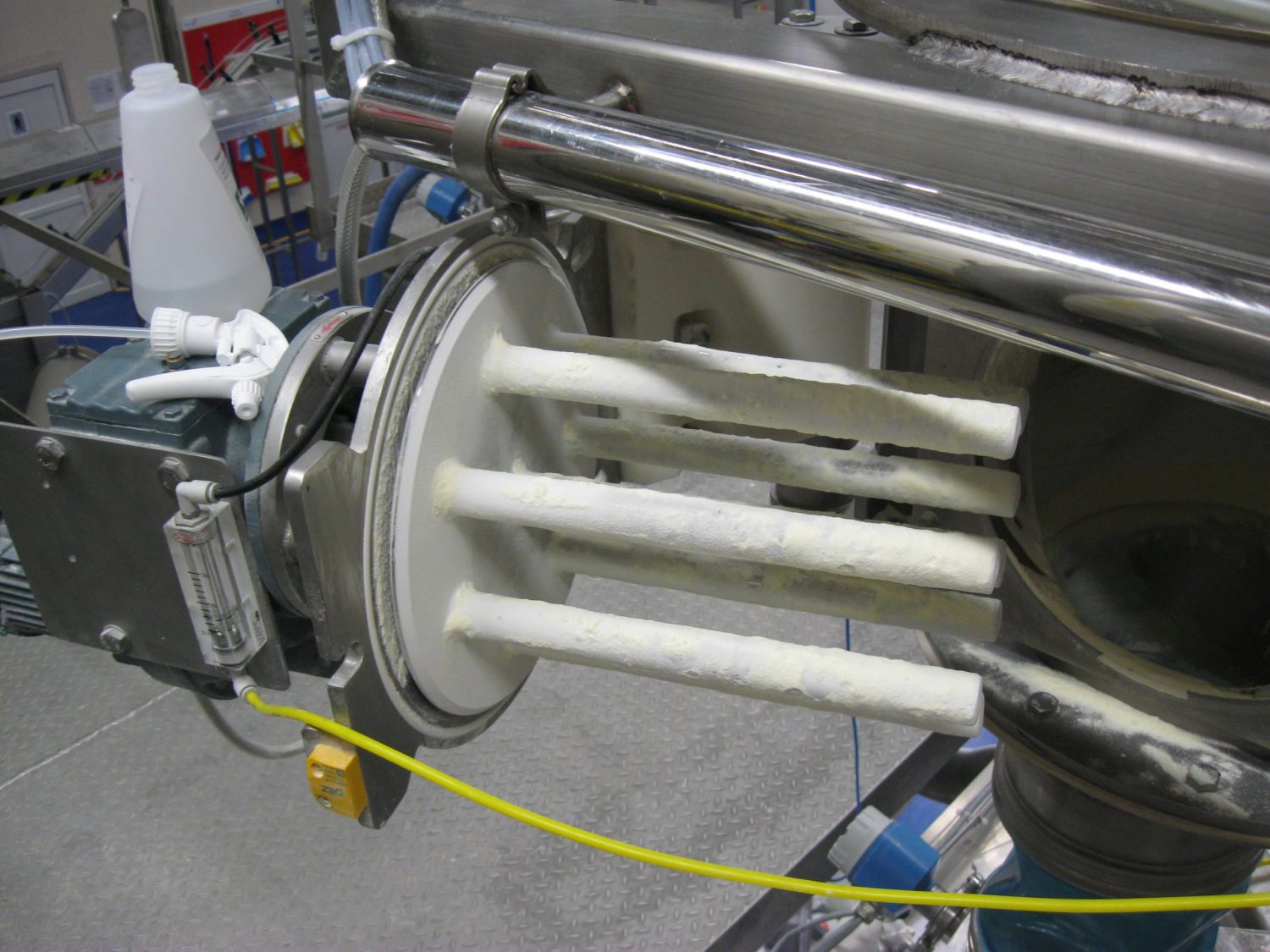

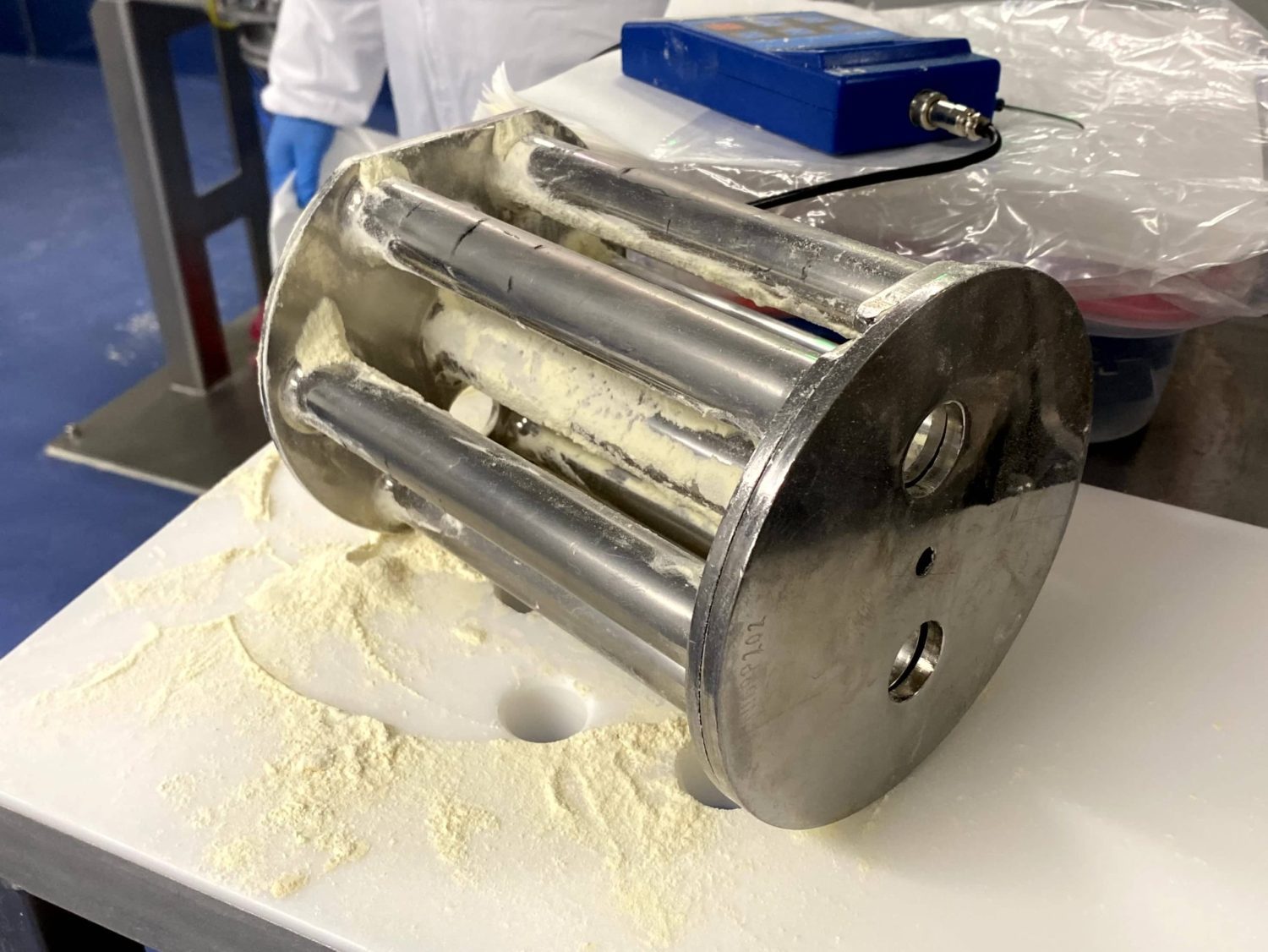

Our rotary grid magnetic separators (RGMS) are used in a variety of industries ranging from food and dairy to chemical and pharmaceutical. They are primarily designed to extract ferromagnetic contamination from powder and granulated products that are prone to caking and bridging by utilising a rotating grid of magnetic rods.
The housing and casings are constructed from 316 stainless steel. The unit is able to be fully disassembled quickly and efficiently, enabling personnel to undertake cleaning and maintenance with ease.

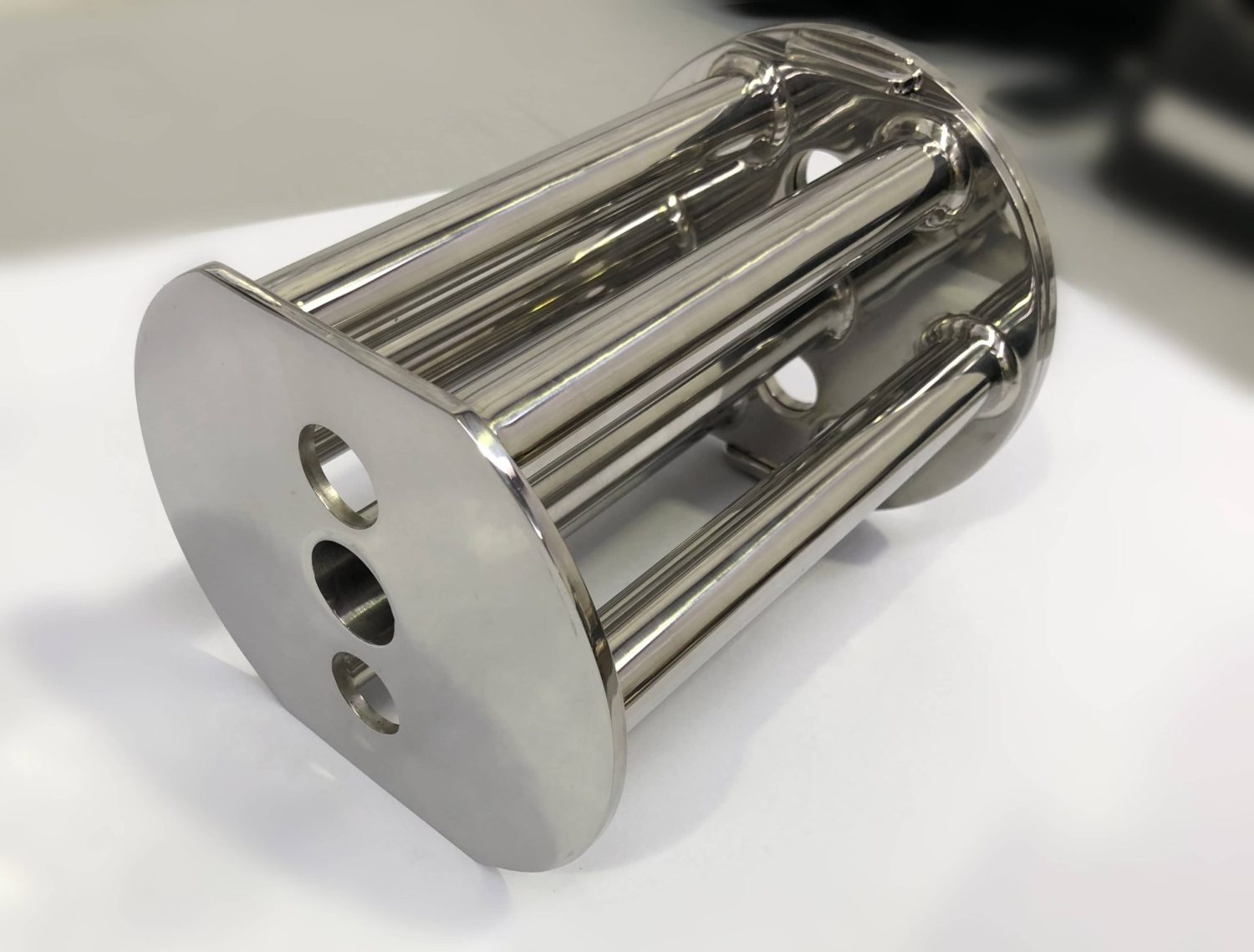

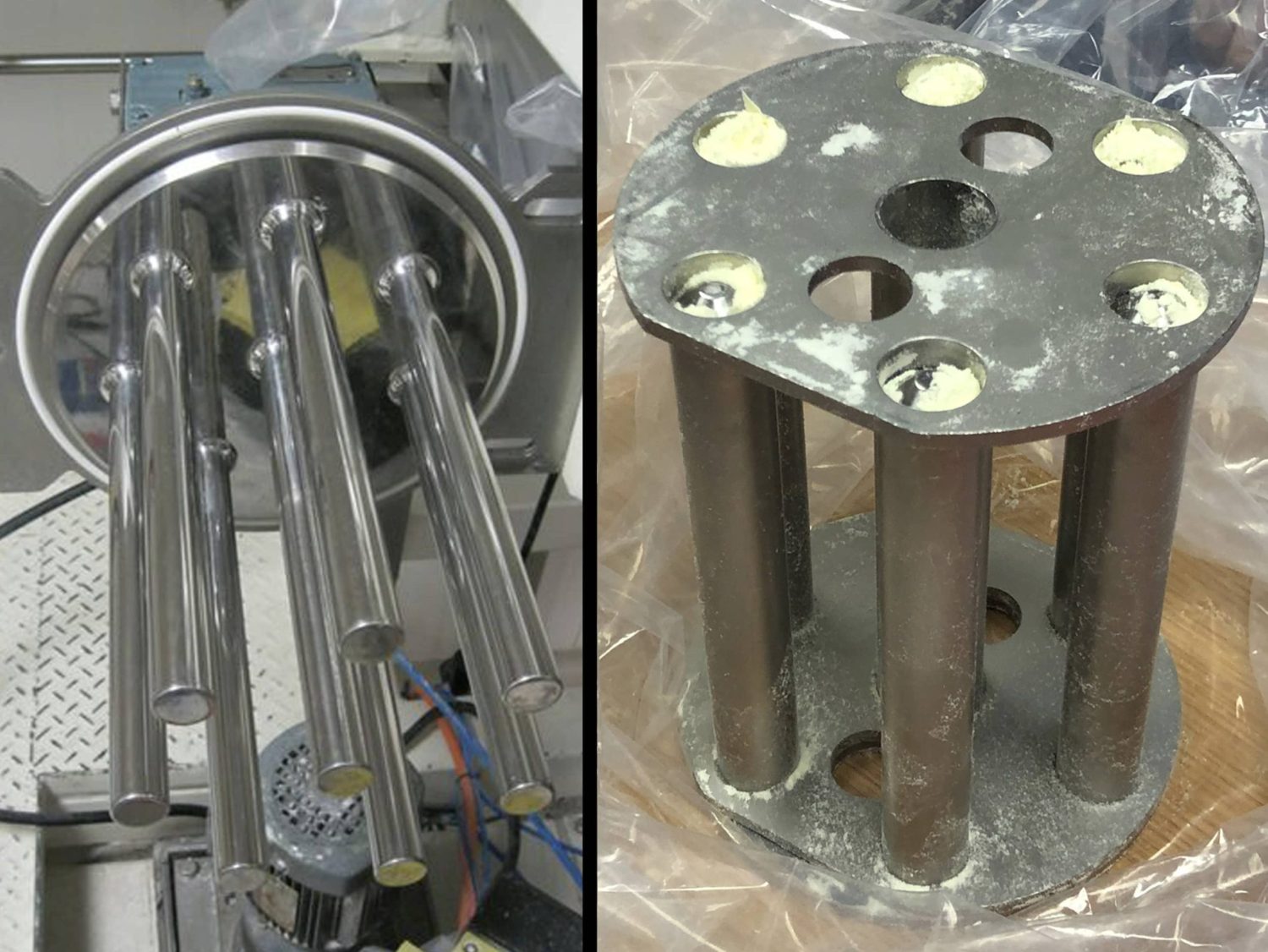

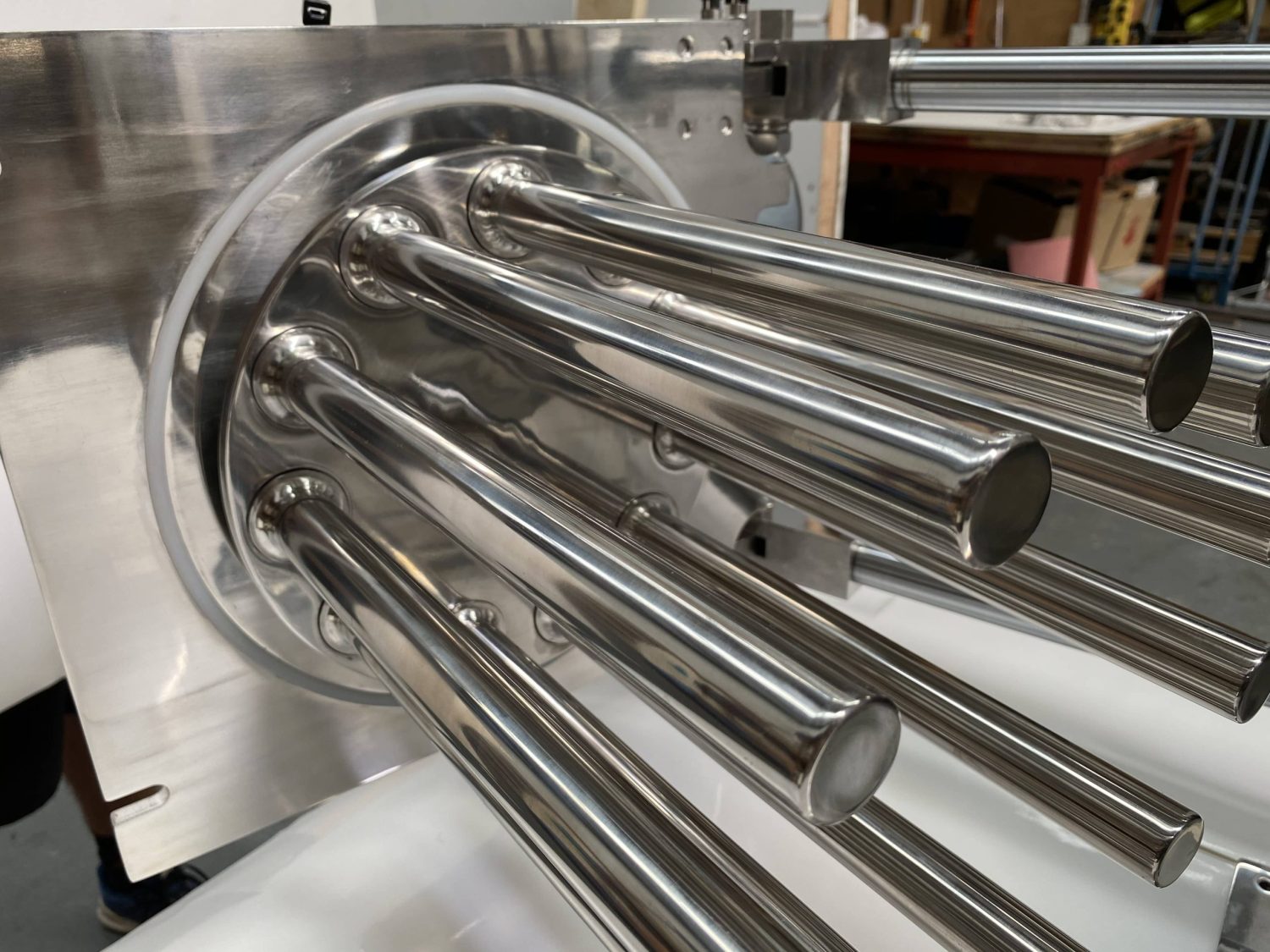

Each rod in the rotary separator houses high strength rare earth neodymium magnets, with the number of rods being able to be increased or reduced to meet client specifications. Our RGMS’ are available in two configurations:

1. Dairy grade with a magnetic strength rating of 10,000 – 11,000 Gauss per rod

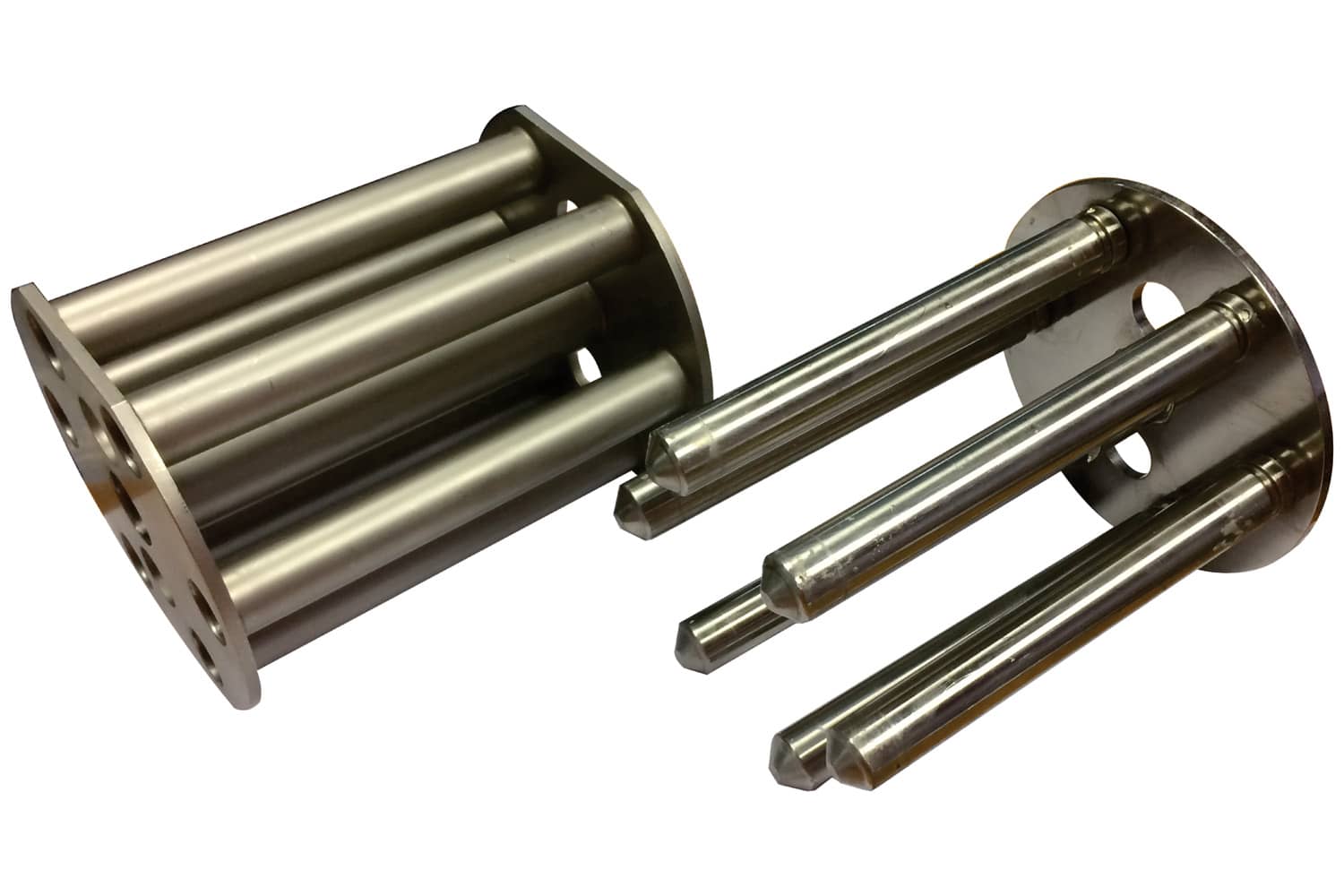

2. Option to make with an easy-clean function, allowing the outer 316 stainless steel casing to be removed from the magnetic rods, allowing easier cleaning of the rotor and removal of contaminant during maintenance.

Easy clean units have a magnetic strength rating of 8,000 gauss per rod with the other sleeve on and 10,000 – 11,000 with the easy clean sleeve off.

Depending on the pipeline/chute that the separator is being installed in, they can be delivered with a variety of round, square or custom flanges/connections.

Our rotary grid magnetic separators have a maximum operating temperature of 80°C although high-temperature versions which can operate up to 350°C are available on request.
