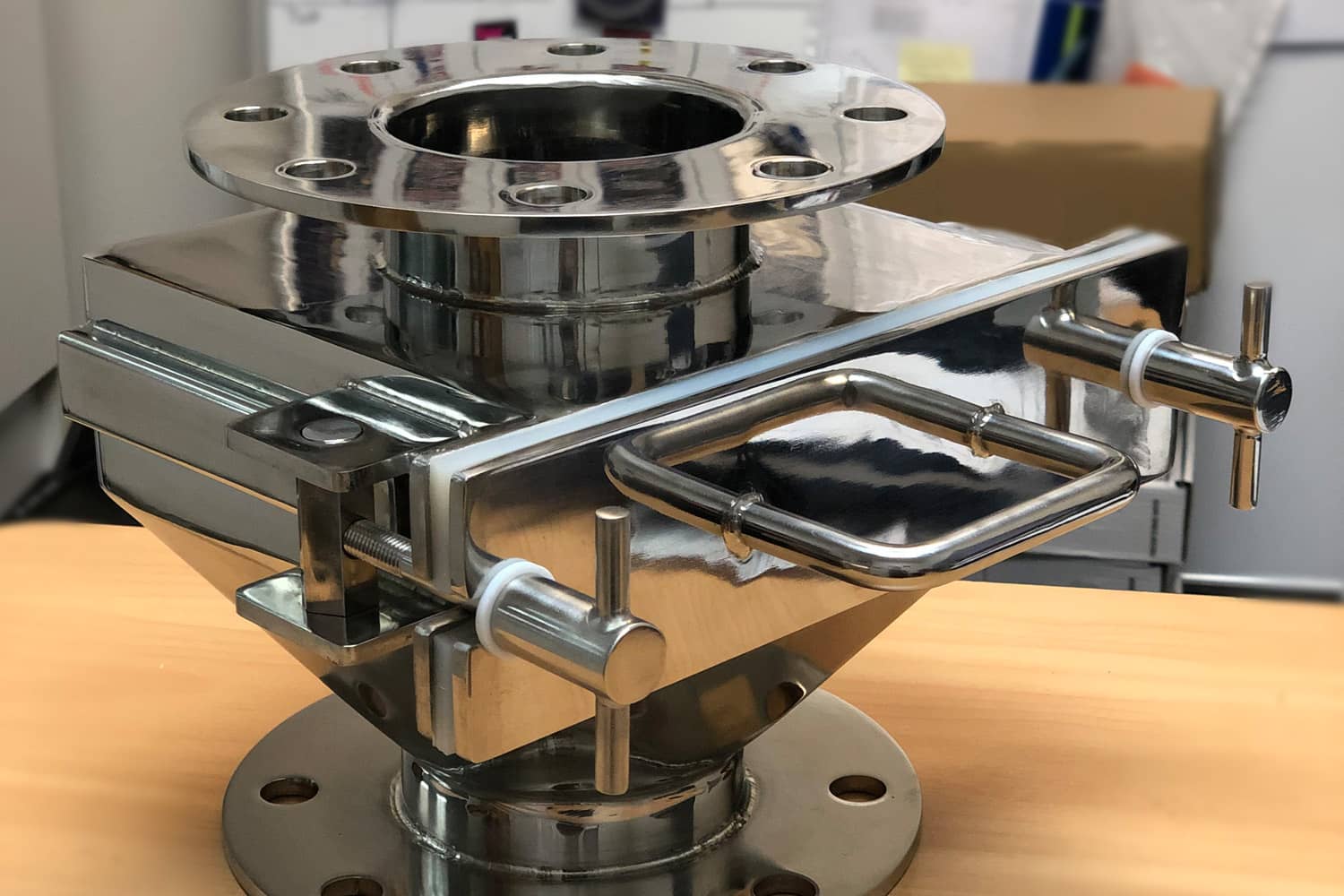

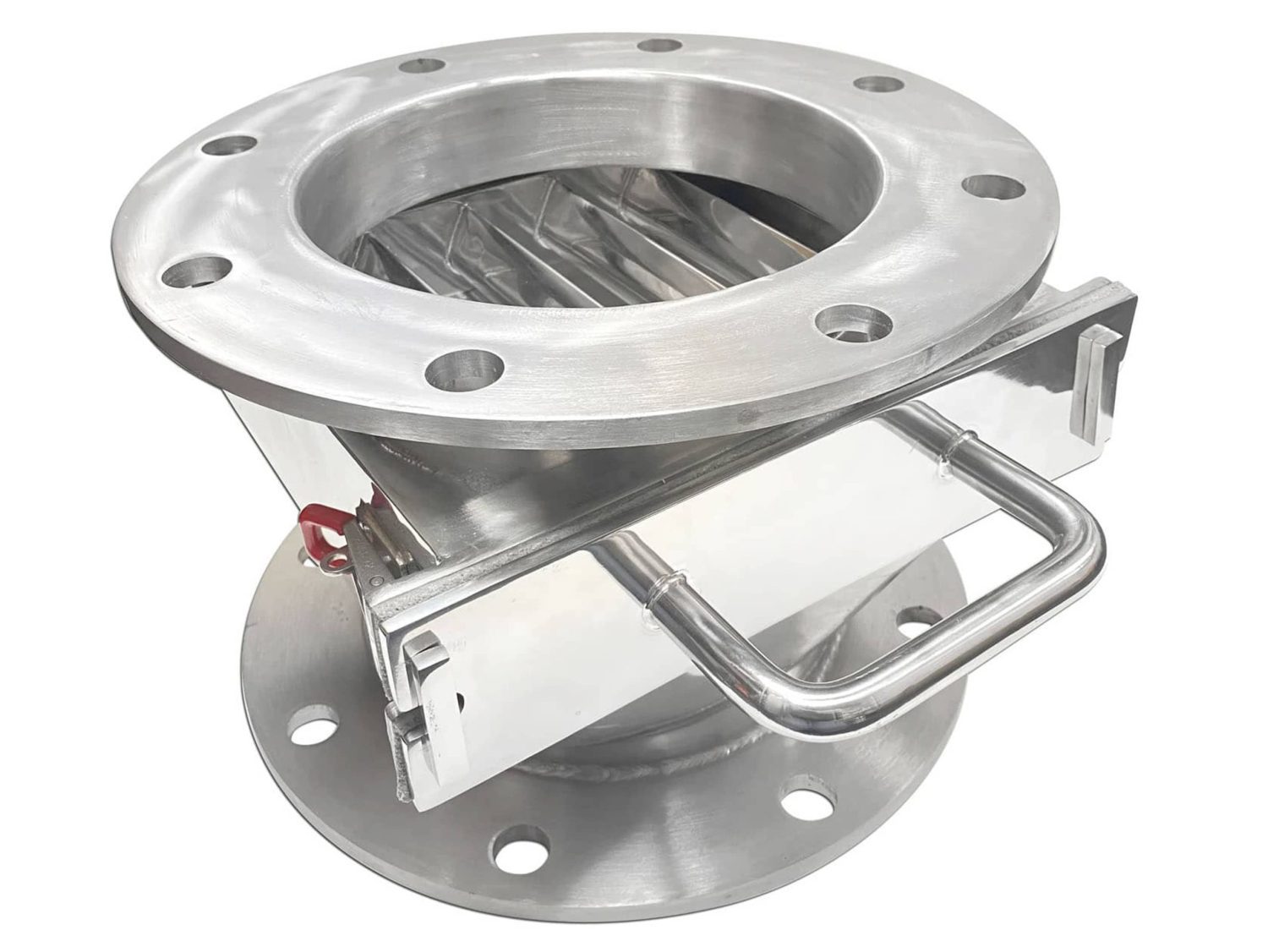

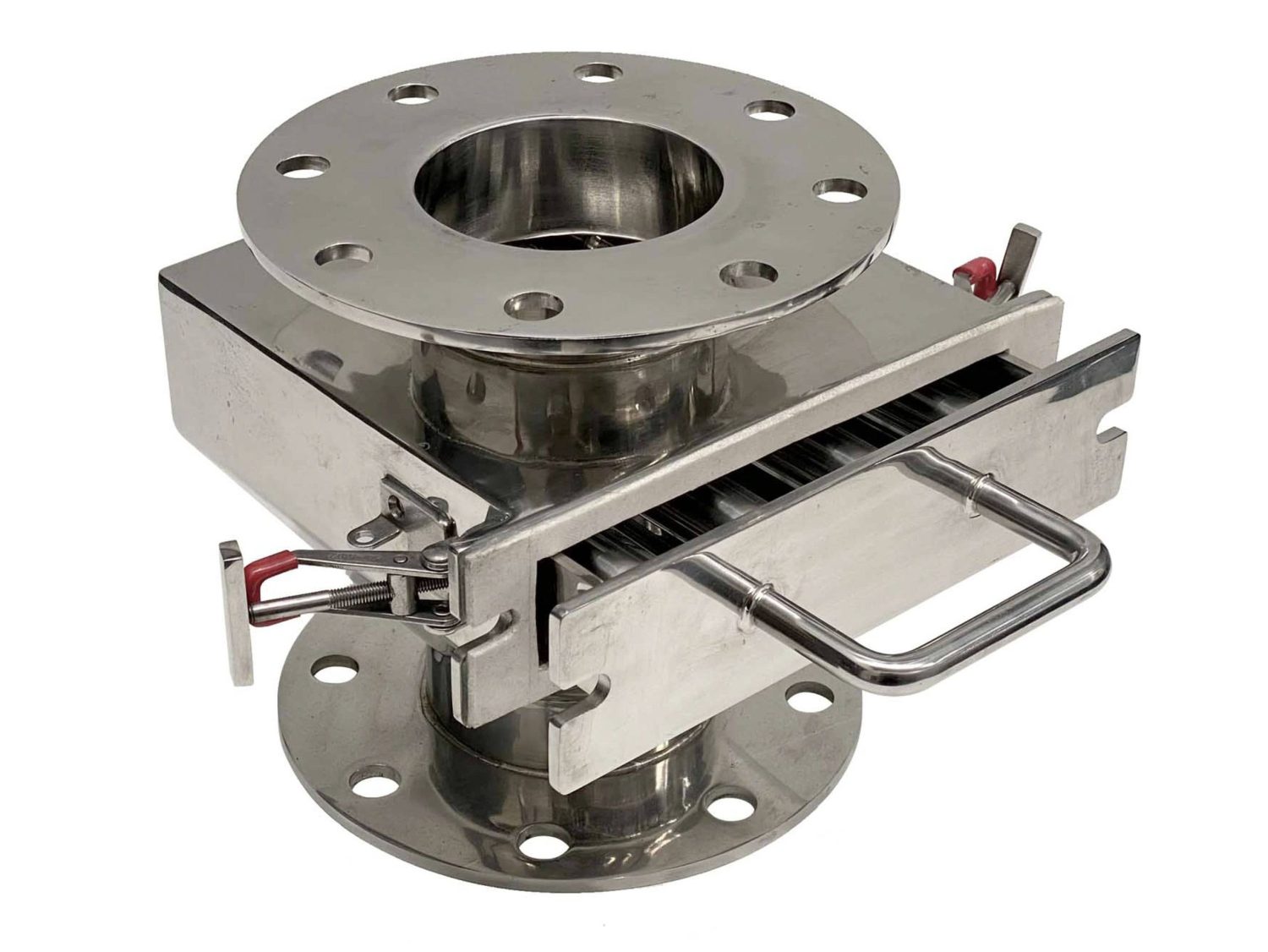

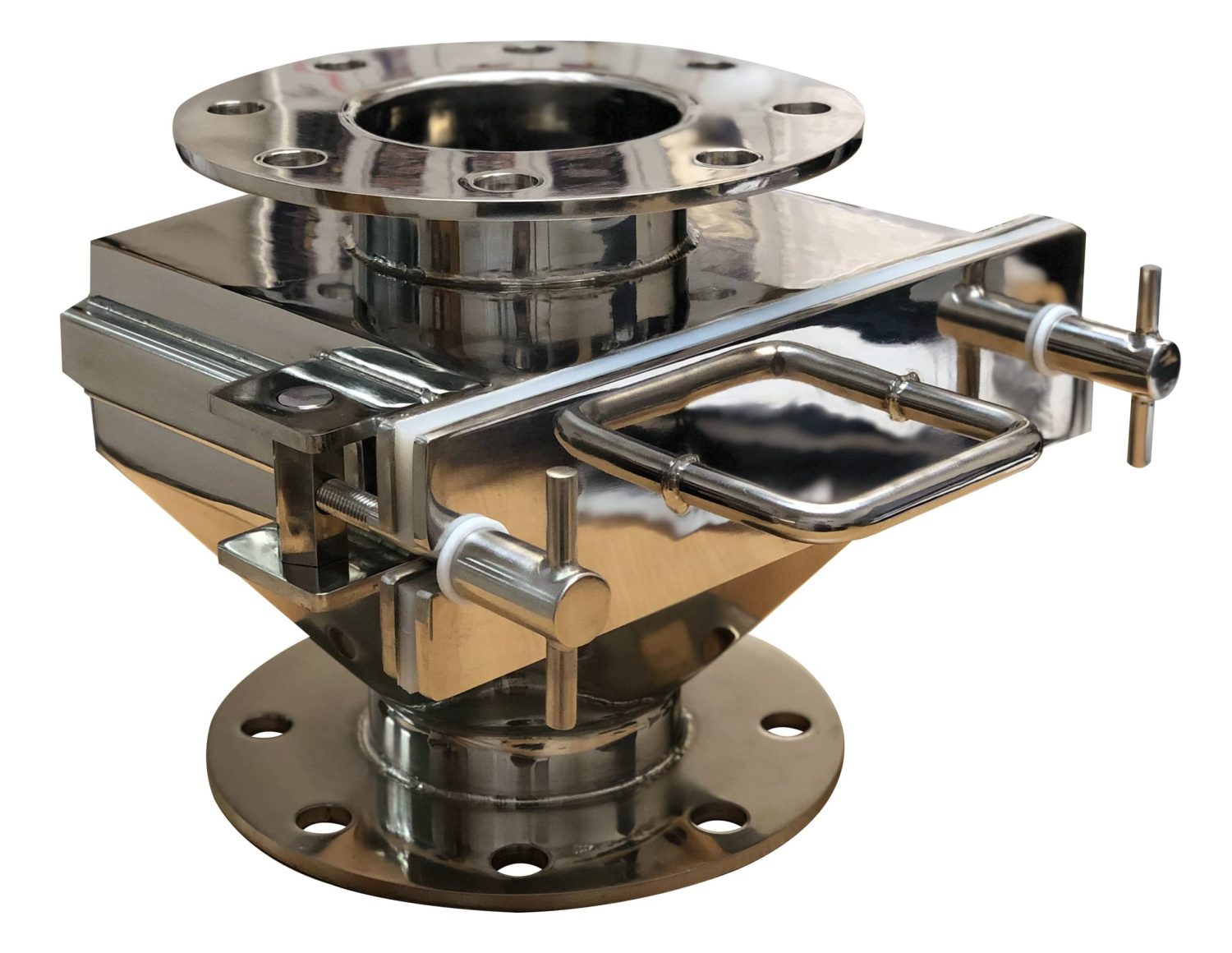

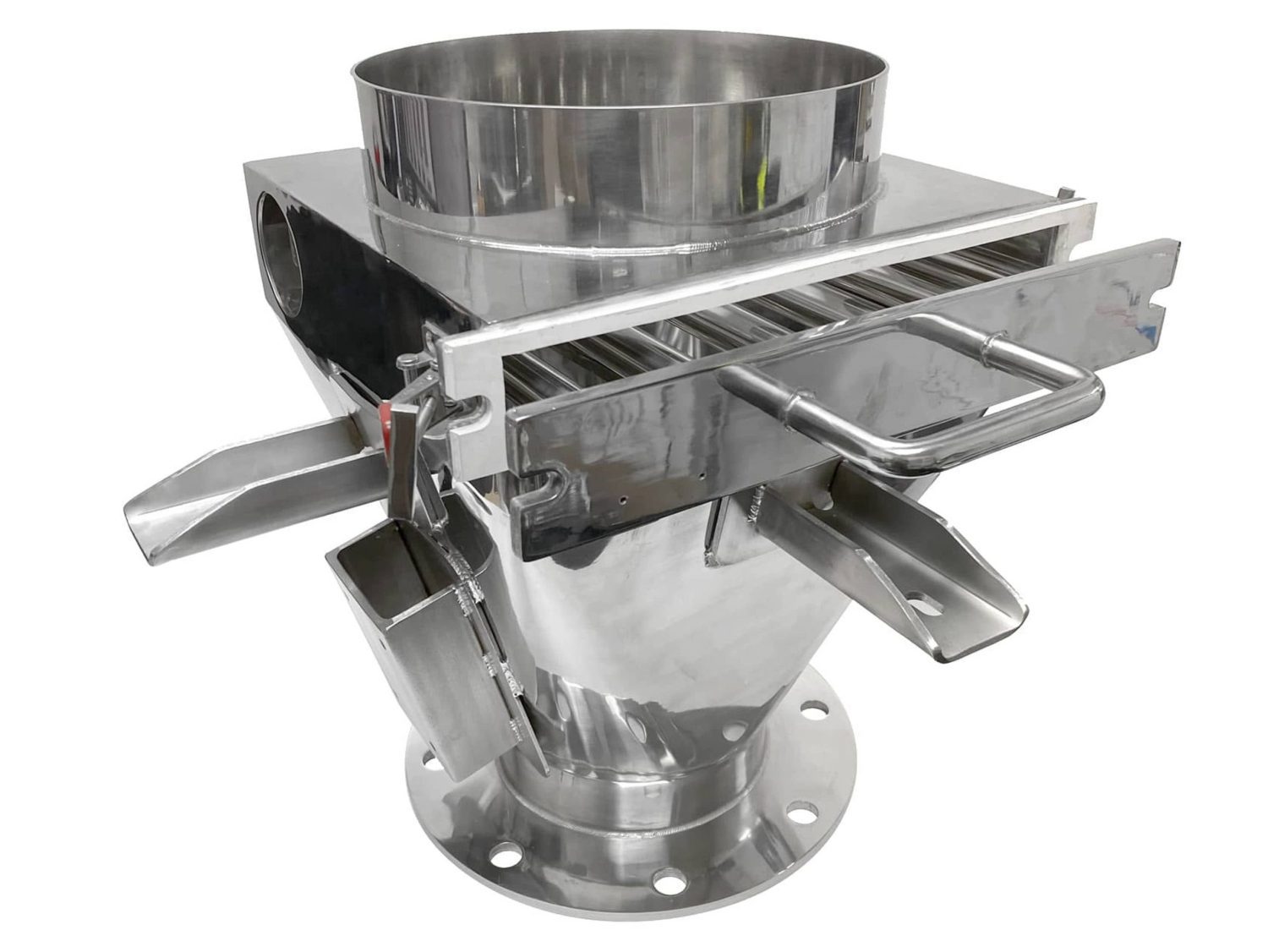

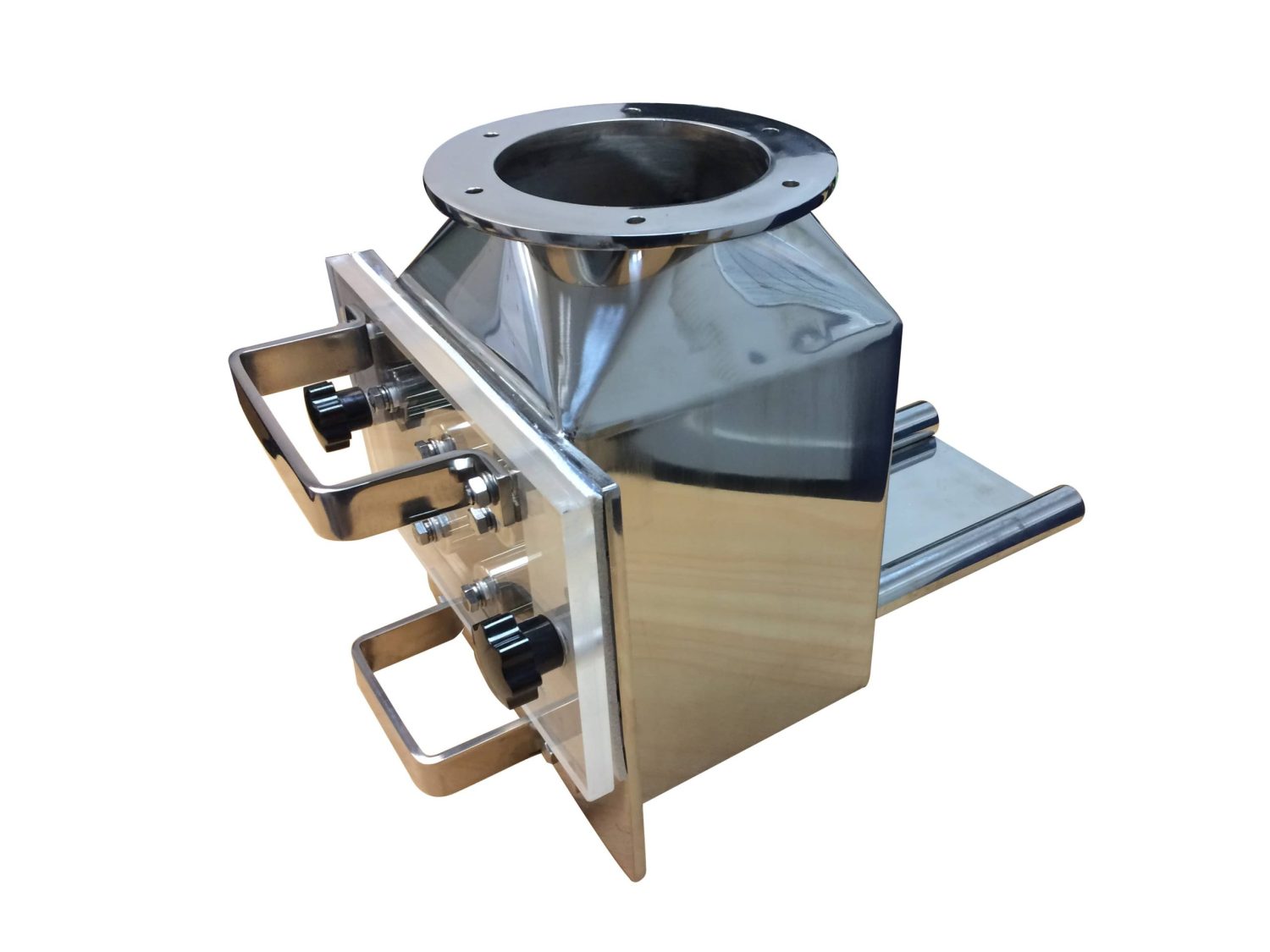

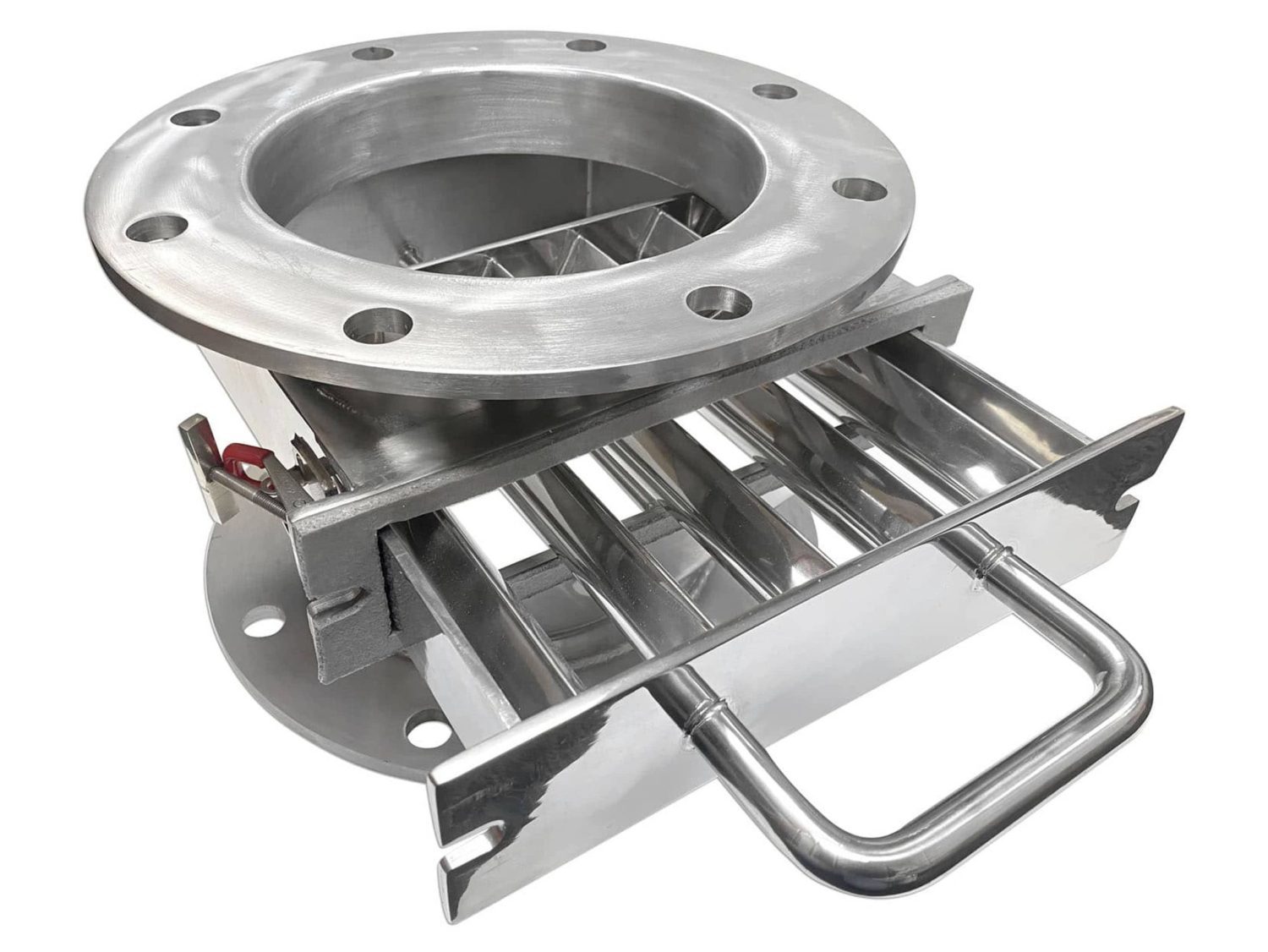

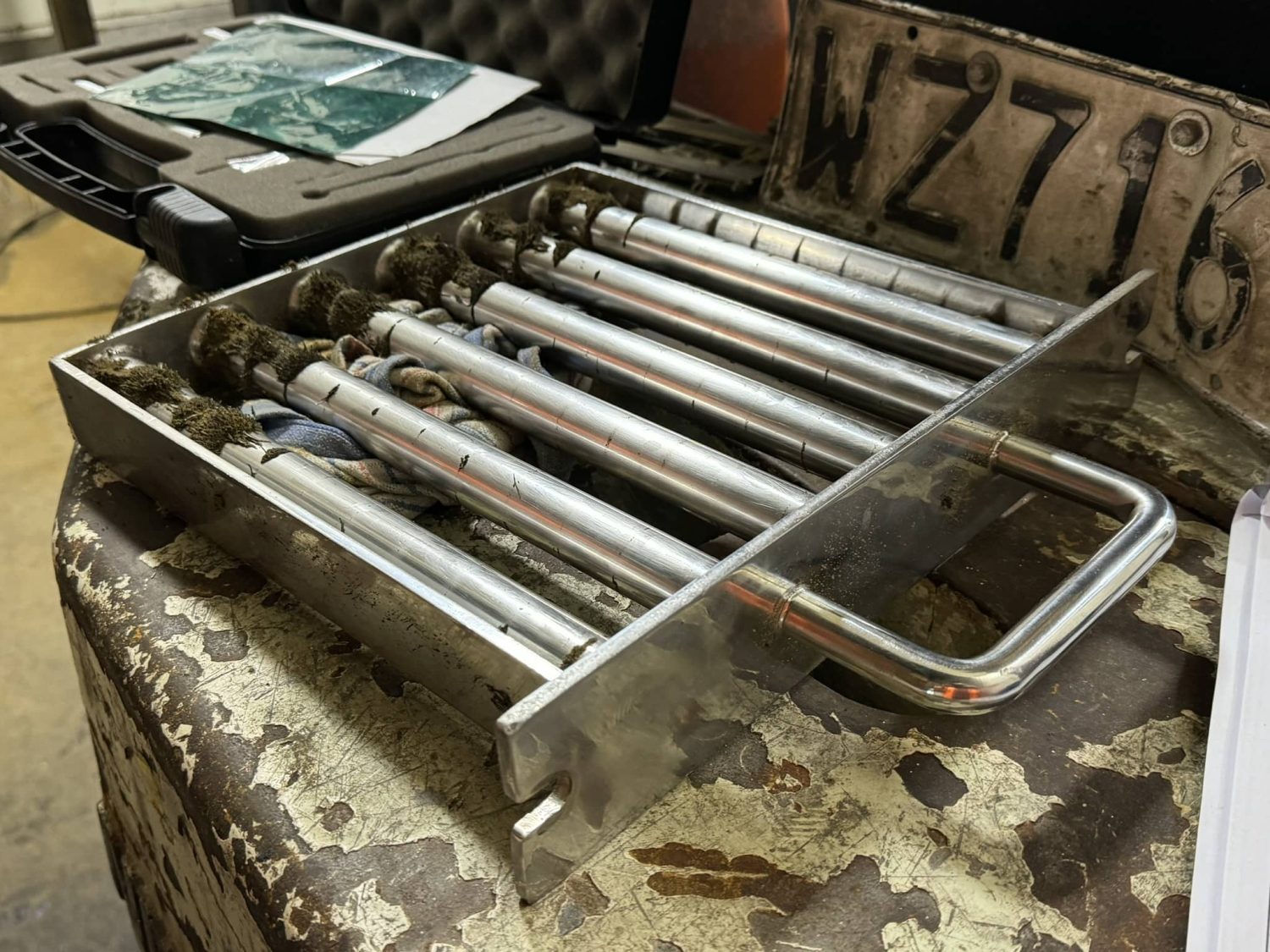

Housed Magnetic
Drawer Grid Systems

Single, double or triple level. We have many designs available

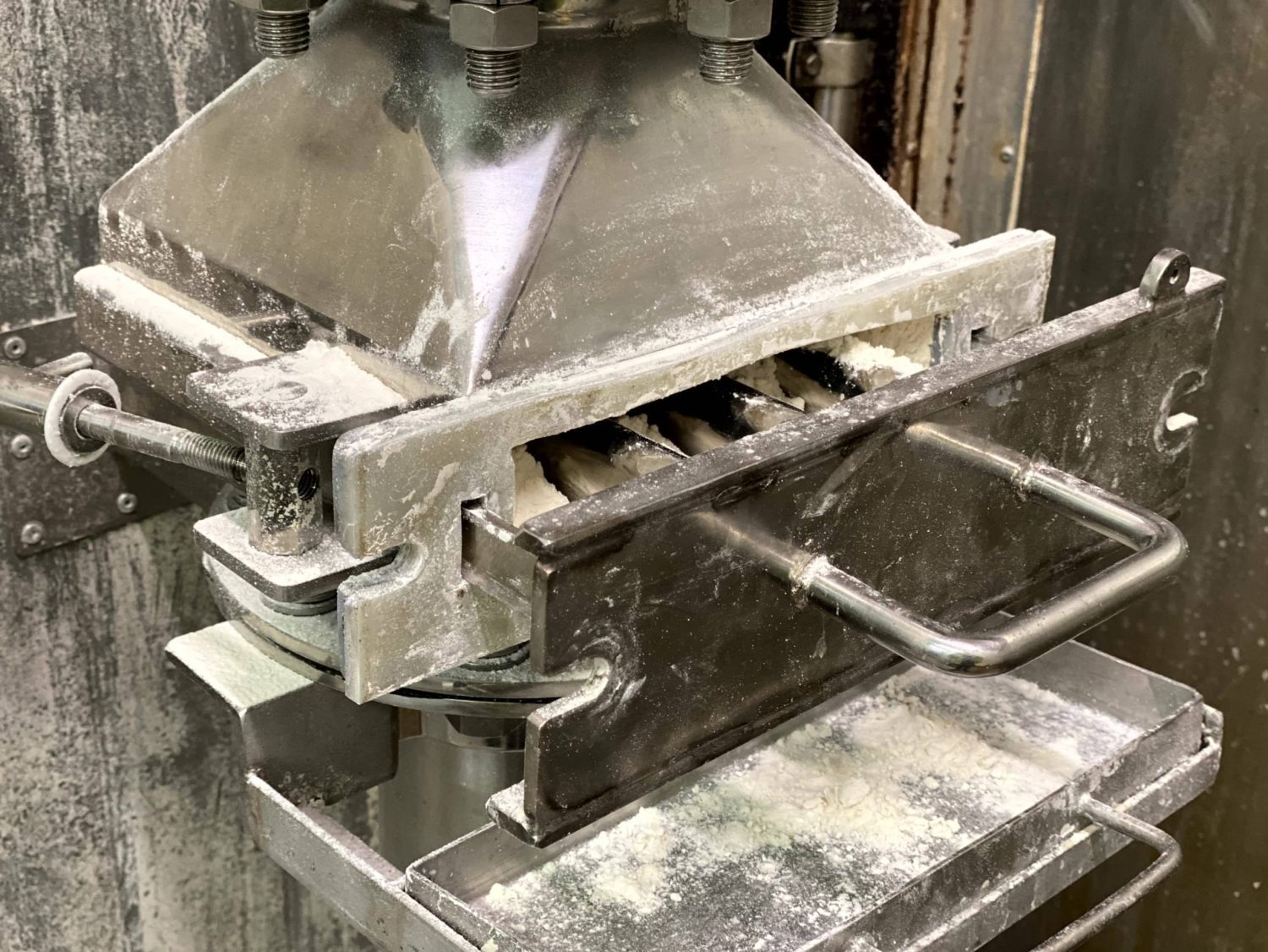

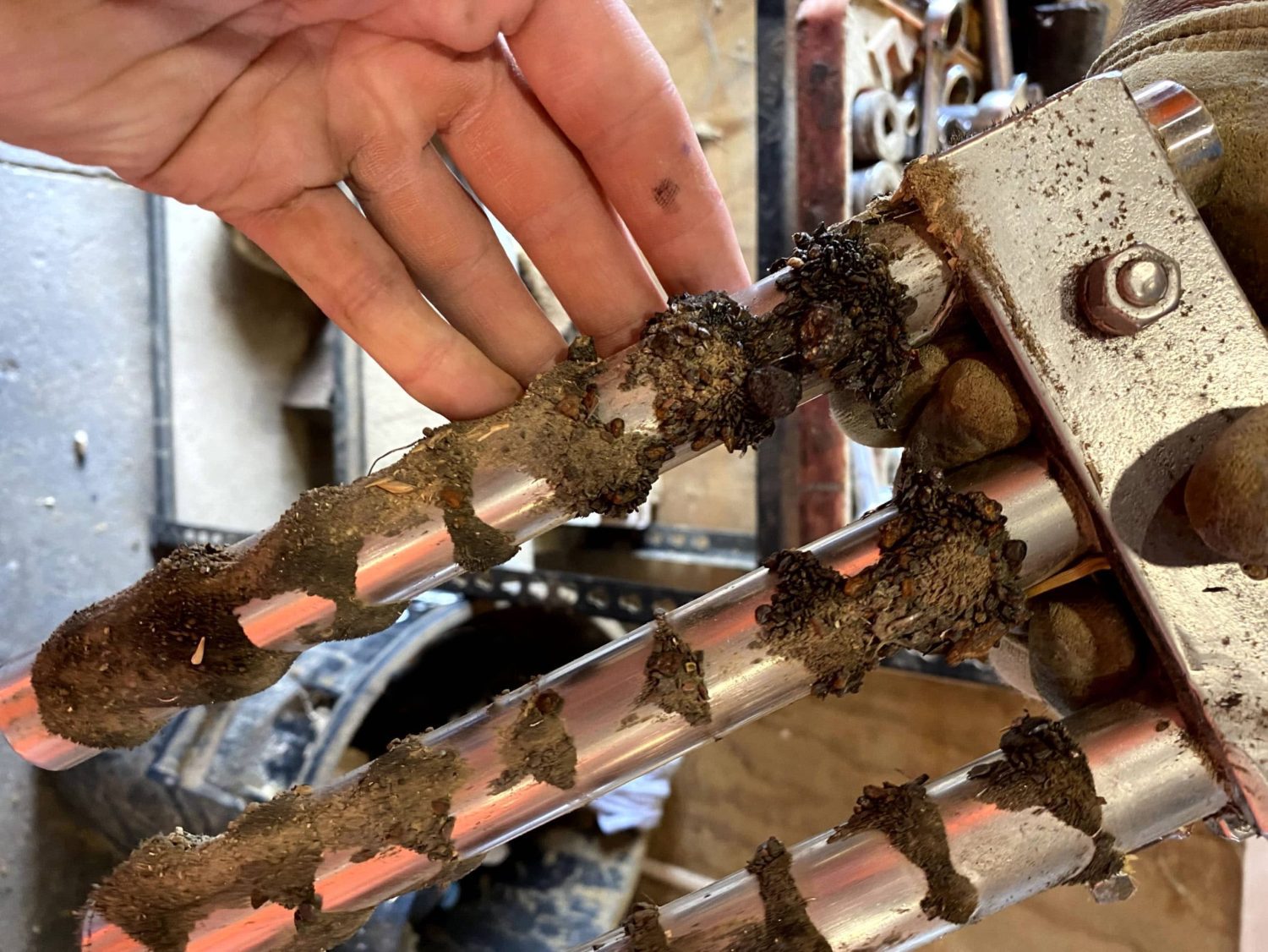

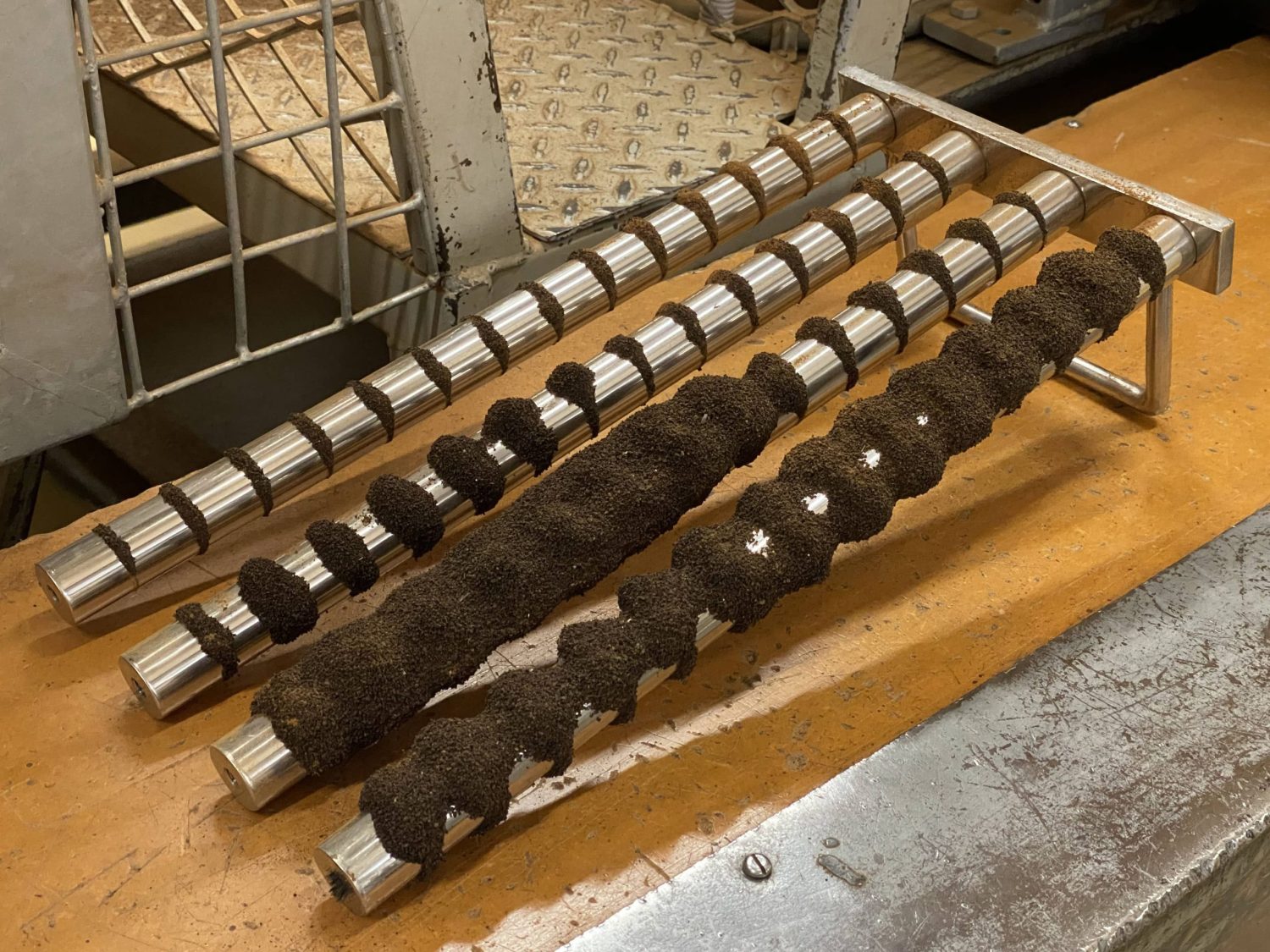

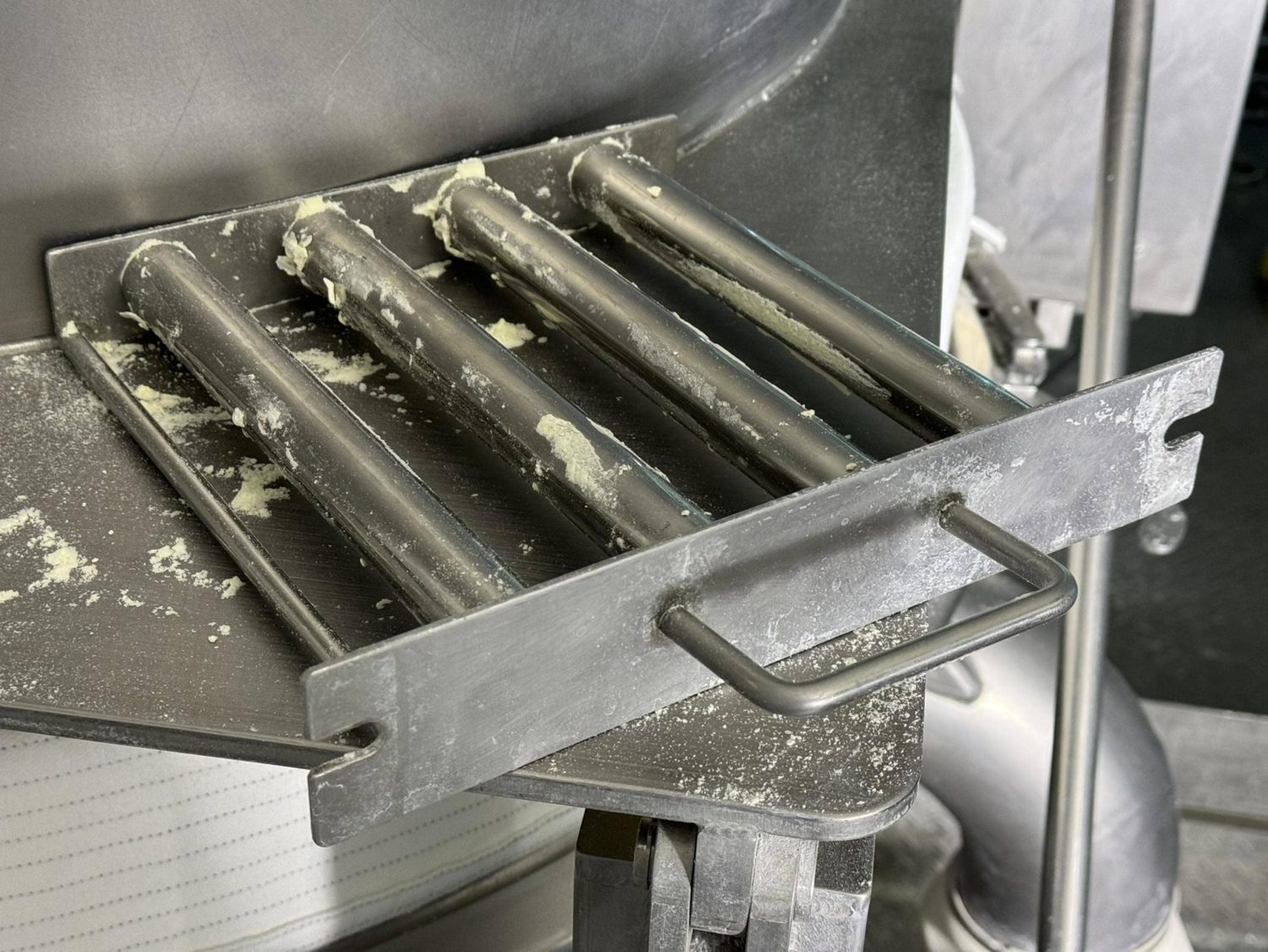

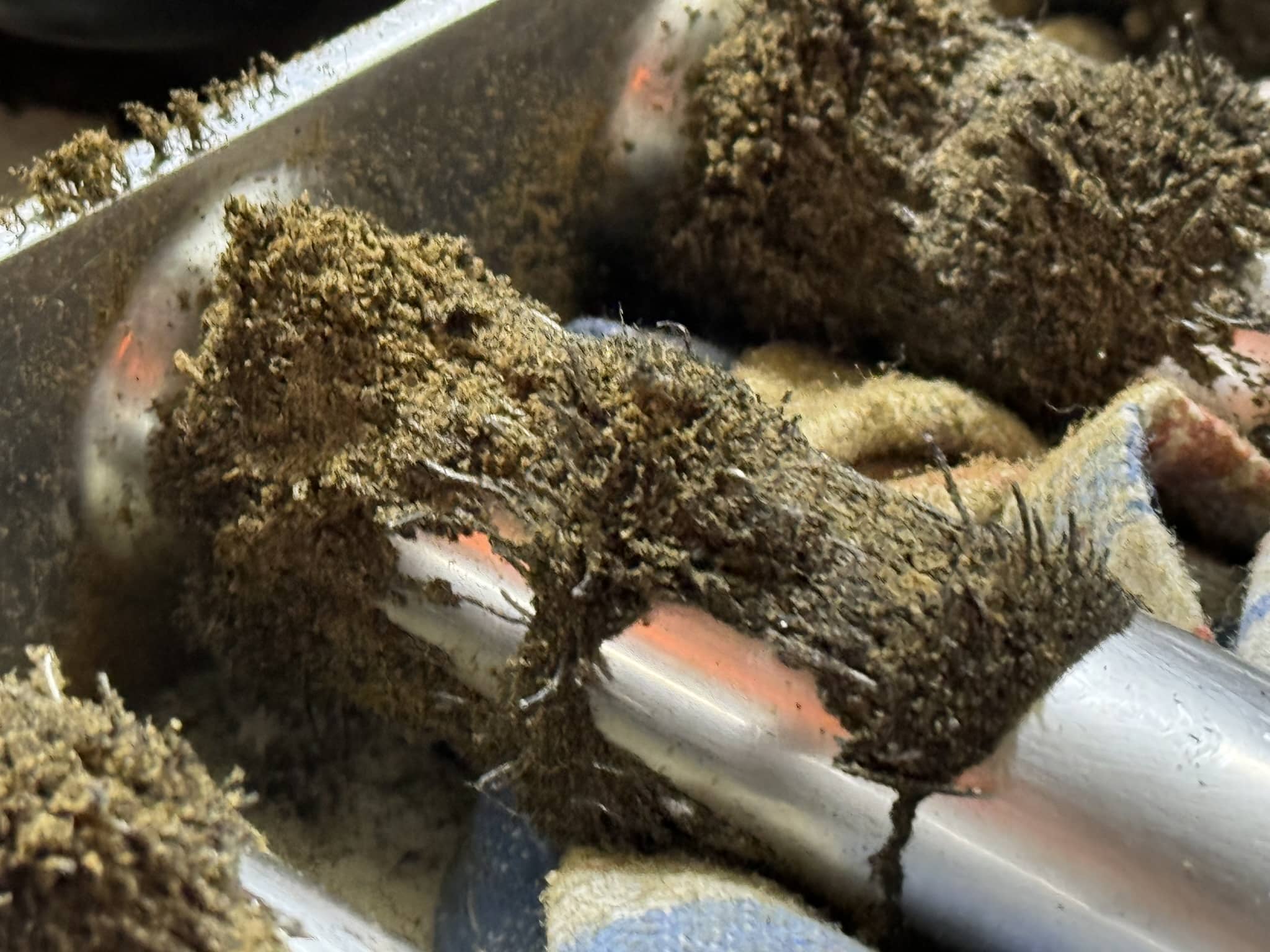

These units are designed for the efficient removal of fine ferromagnetic contamination from a wide range of free-flowing powders and granules such as flour, milk powder, sugar, grain, tea etc.


1. Custom built to suit new or existing product lines.

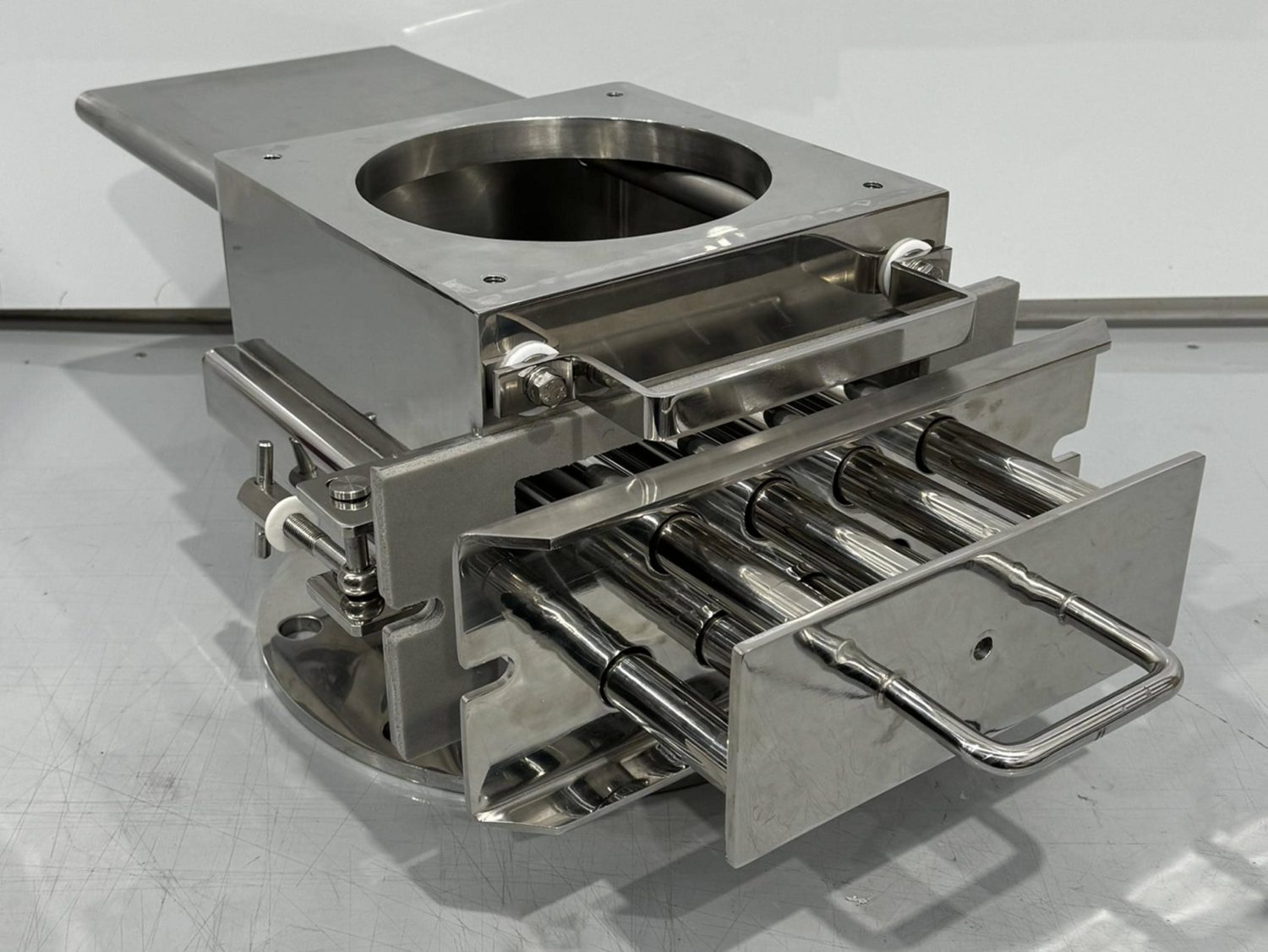

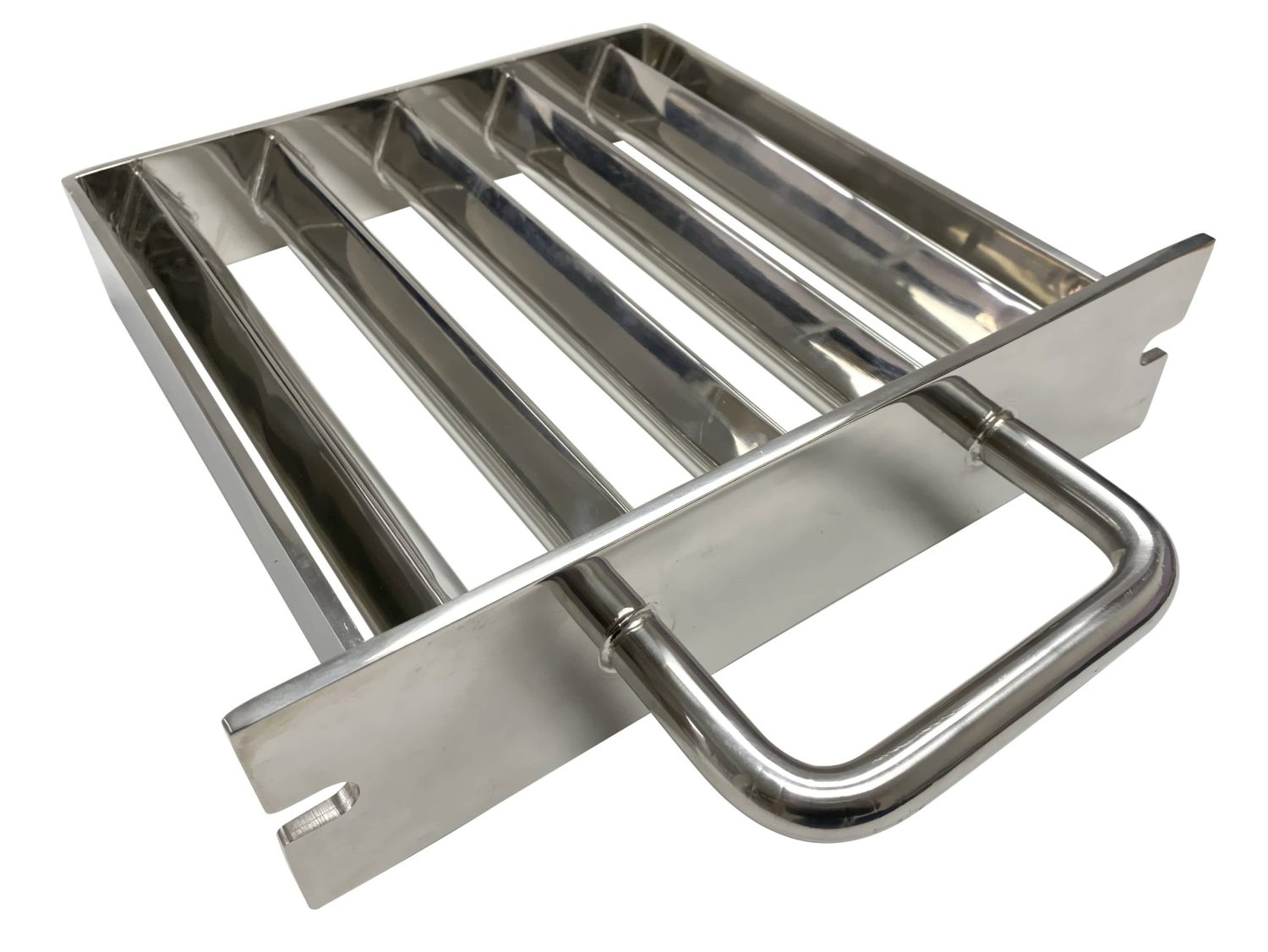

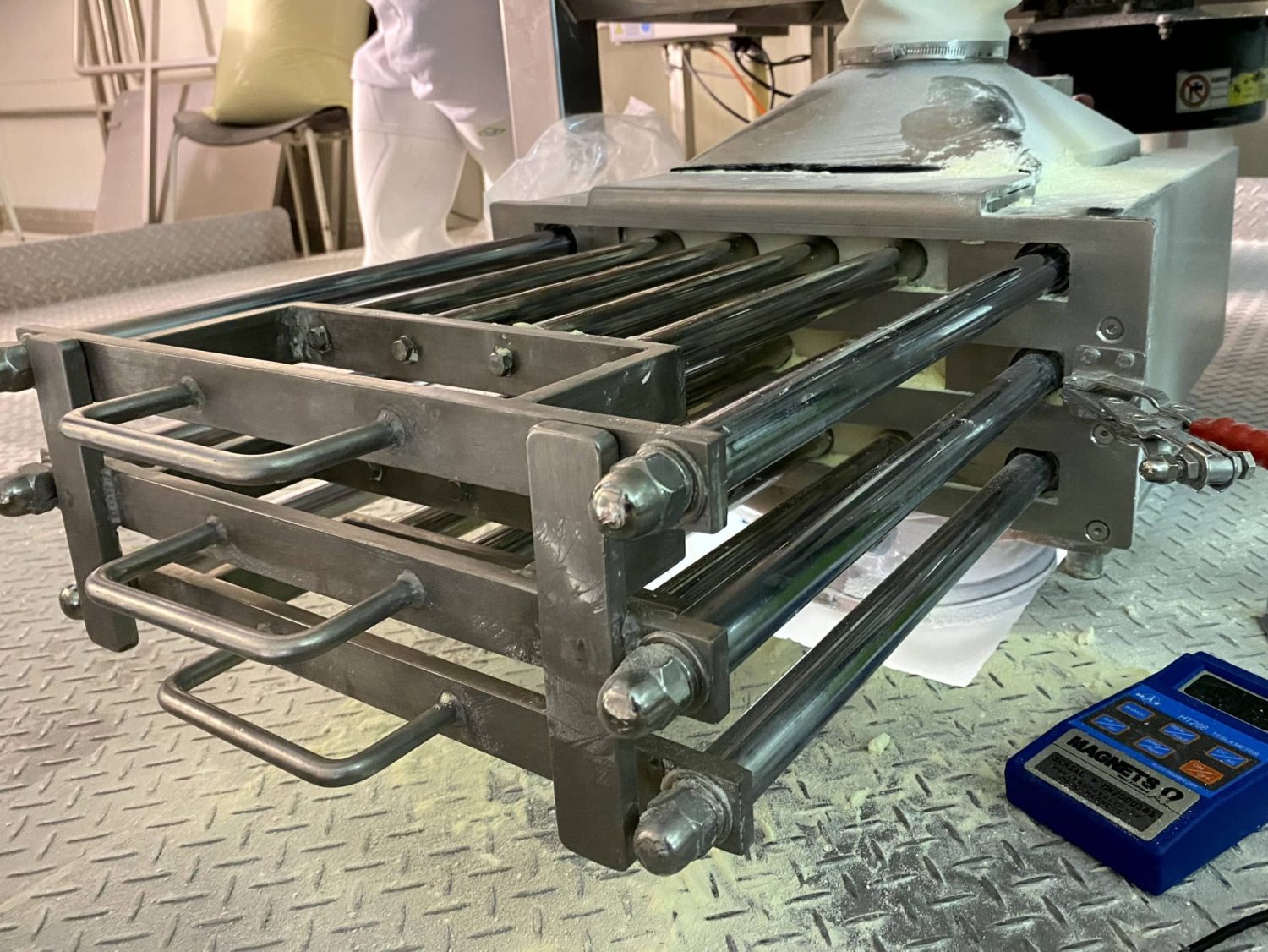

2. One, two or more levels of highly magnetic rods to cater for slow, medium and high product flow rates.
3. All magnetic rod casings are 316 stainless steel.
4. Inlet/outlet options, are round or square flanges, tube ends, BFM ends or custom made to suit.
5. Standard 80°C temperature rating with high-temperature options to 350°C available on request.

Three options available:

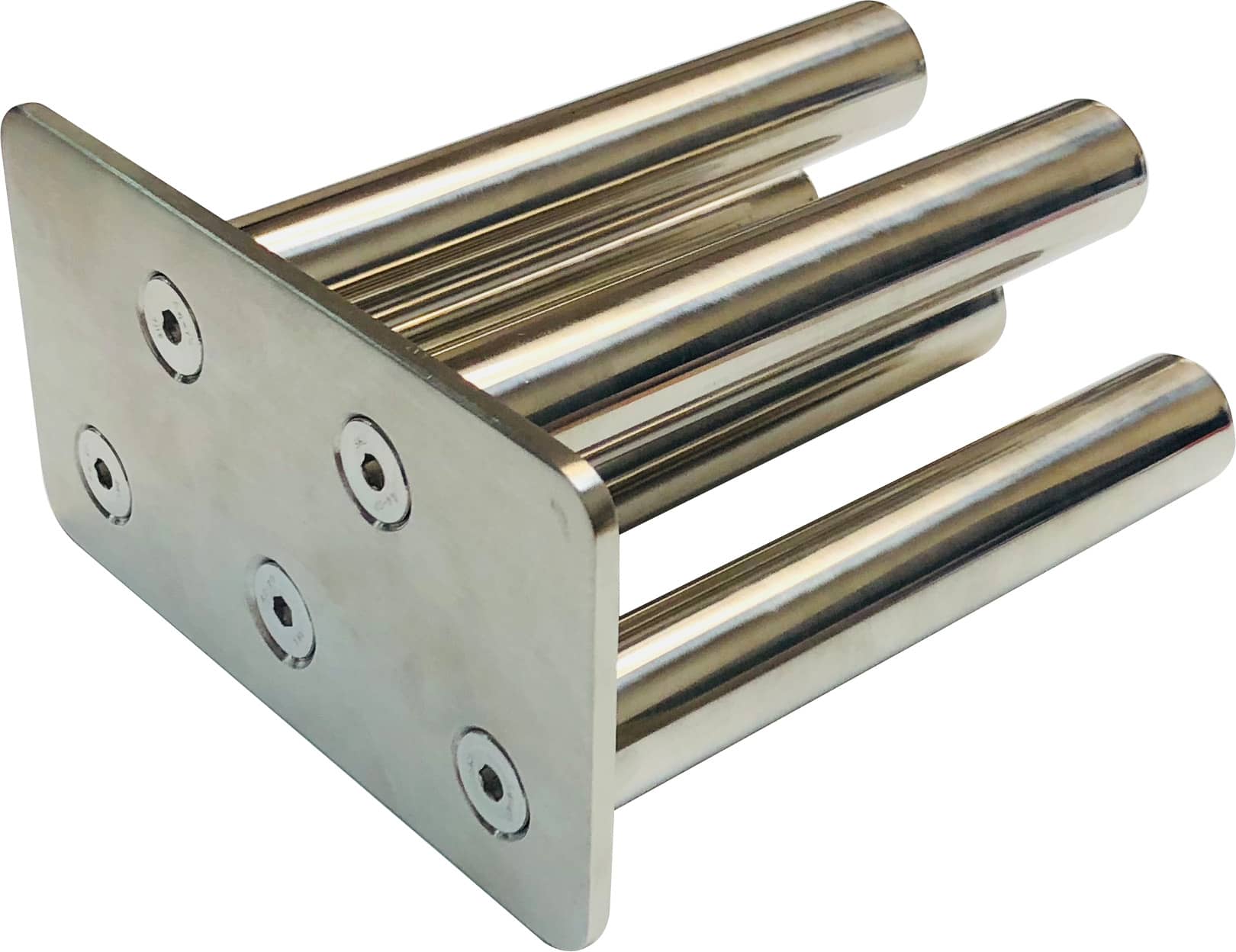

(a) Industrial bolt on rods (non-food grade) 11,000-12,000 Gauss.
(b) Food/dairy grade fully welded 10,000-11,000 Gauss.
(c) Easy clean food/dairy grades 8,000 Gauss.
